Description

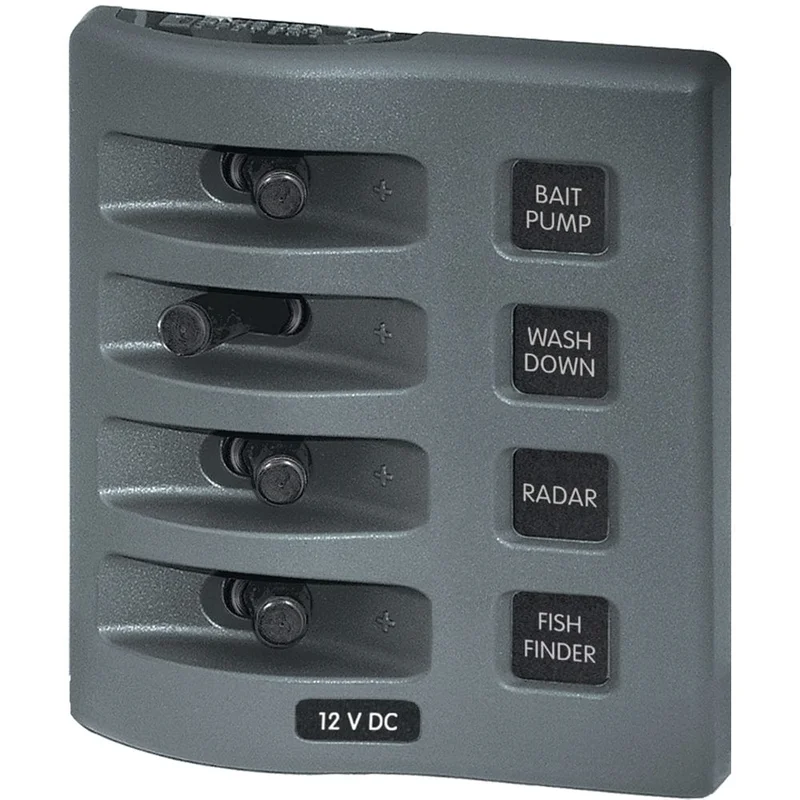

WeatherDeck® 12V DC Waterproof Switch Panel – 4 Position

• Integrated switch guards reduce the risk of accidental switching
• Panels can be mounted in four different orientations
• Panel front rated IP67 when properly mounted with watertight mounting gasket
• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof:Waterproof

Positions: 4

Nominal Voltage: 12V DC/24V DC

Circuit Protection: None

Maximum Amperage: 15A @ 12V DC (per circuit)

Panel Cumulative Rating: 45A

Material: Reinforced Polycarbonate

Height: 4.30″(109.22 mm)

Width :3.88″(98.55 mm)

Depth: 2.50″(63.5 mm)

Weight: 0.90lb (0.41 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Waterproof: Waterproof
• AC/DC: DC
• Max Breaker Quantity: 4
• Voltage: 12/24v
• Box Dimensions: 4″H x 6″W x 7″L WT: 0.7 lbs
• UPC: 632085043056

Owner’s Manual (pdf)
