Description

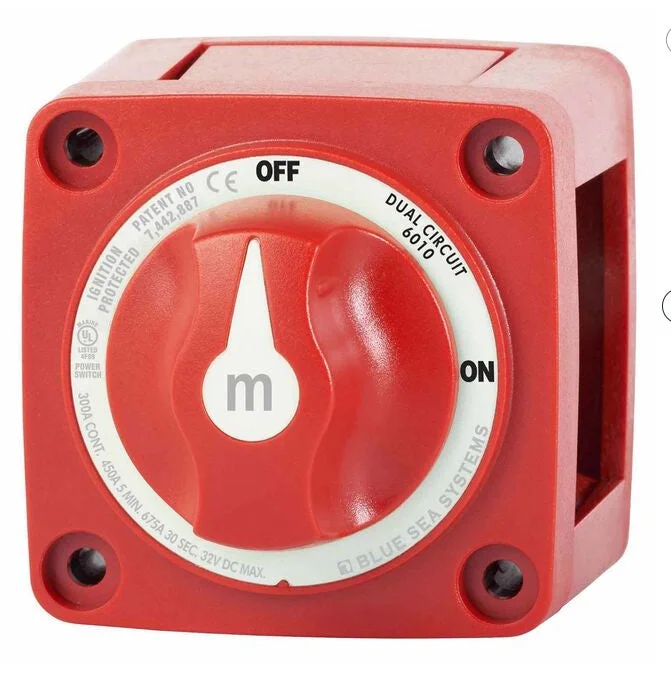

Blue Sea 6010 M-Series (MINI) Battery Switch – Dual Circuit.

Dual Circuit™:

• Switches both positive and negative lines simultaneously with one simple ON/OFF switch meeting European and metal boat requirements for a double pole switch.
• Switches circuits of different voltages, such as 12 volt and 24 volts, simultaneously with one simple ON/OFF switch.

Features:

• Ignition protected – Safe for installation aboard gasoline powered boats.
• Case design allows surface, front panel, or rear panel mounting.
• Isolating cover with snap-on sections protects rear contacts.
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals.
• 7/8″ (22.22mm) stud length to accept multiple cable terminals.
• Ideal for marine or RV applications.
• All non-corrosive marine grade metals.
• Molded in durable reinforced polycarbonate.
• Tactile textures indicate knob position by feel only.
• Label with international ON/OFF legends.
• Removable key or knob remains positively retained.
• ICON label set included for circuit identification.
