Description

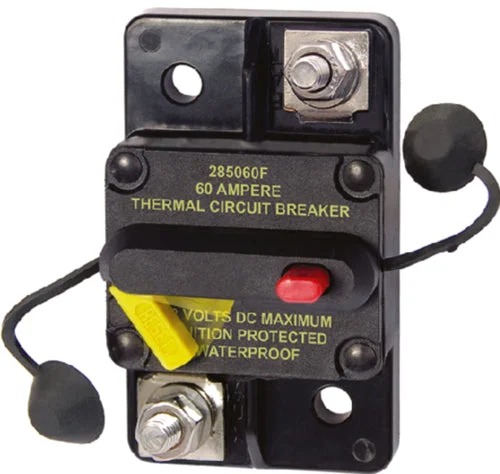

Ble Sea Systems 285-Series Circuit Breaker – Surface Mount 60A.

Model: 7184-BSS

Provides medium duty circuit protection for 25 to 200 amp loads when switching and circuit protection are both required. “Trip-free” – cannot be held closed after trip. Visible reset lever shows open condition. Drop-in replacement for 185-Series circuit breakers. Maximum operating voltage 48 volts DC. Meets SAE J1171 external ignition protection requirements. IP67-protected against immersion up to 1 meter for 30 minutes.

Features:

• Drop-in replacement for 185-Series Circuit Breakers.
• Visible reset lever shows open condition.
• Ignition protected – Safe for installation aboard gasoline powered boats.
• Meets SAE J1171 external ignition protection requirements.
• Weather Resistant.
• Combines switching and circuit breaker function into one unit*.
• “”Trip Free”” – cannot be held closed after trip.
