Description

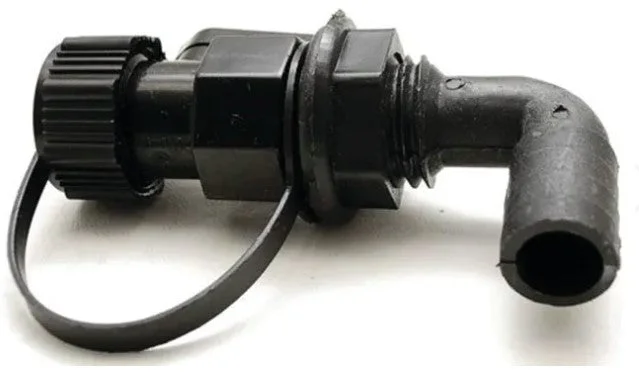

T-H Marine Wash Down Fitting – With Shutoff Valve – 90 Degree.

A bulkhead mounted washdown fitting that is inexpensive, functional, easy to install, and rust proof. This injection molded plastic fitting is 2 1/4″ in diameter and mounts in 1 1/4″ diameter hole with 3 countersunk screws. Barbed hose fitting connects 3/4″ inside diameter tubing. Standard hose threads with a protective cap which has a retaining strap is standard. Available with or without a shut-off valve.

• Injection molded, UV stable, rust proof.
• Standard garden hose thread outlet.
• Inlet fits 3/4″ marine hose.
• Protective cap with retainer.
• Flange dimension 2-1/4″ OD.
• Installation in 1-1/4″ hole.
• Available in straight and 90-degree inlet configurations.
• Available in black or chrome plated flange.

(WDV-90-DP)
